New Mansoura Reverse Osmosis Station

Large-scale reverse osmosis station automation project combining PLC control, HMI operation, VFD integration, wiring documentation and plant-ready panel engineering.

Automation Scope

System Components

Siemens S7-1200 PLC

HMI automatic/manual operation

High-pressure pump VFD programming

Mixer VFD programming and wiring package

Scope of Work

RO station control panel engineering and automation logic

VFD panel integration for mixers and high-pressure pumps

Manual, off and auto operation modes with alarms and trips

Wiring diagrams, from-to documentation and commissioning support

Project Gallery

Operator Screens, Panels and Process Details

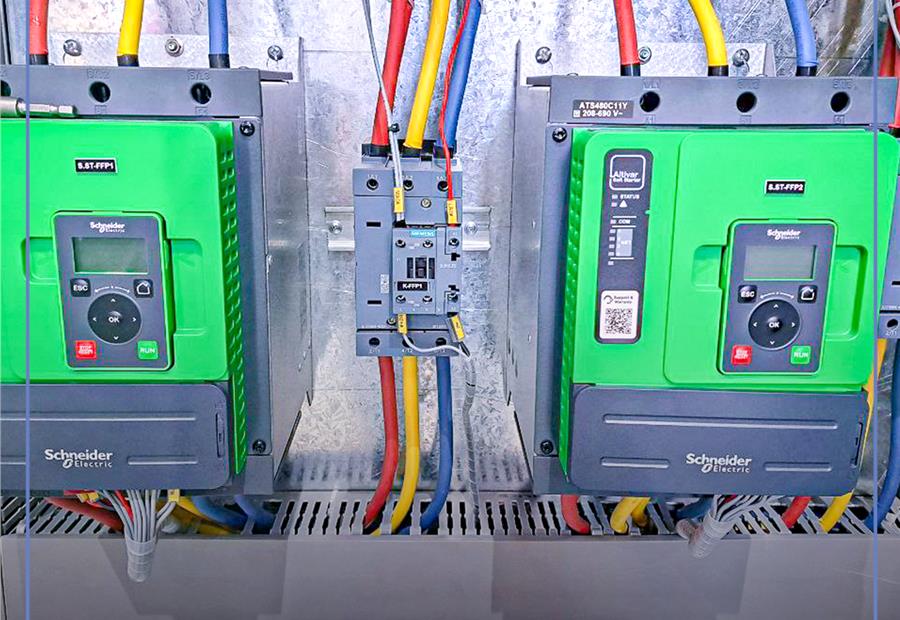

VFD section for RO process equipment

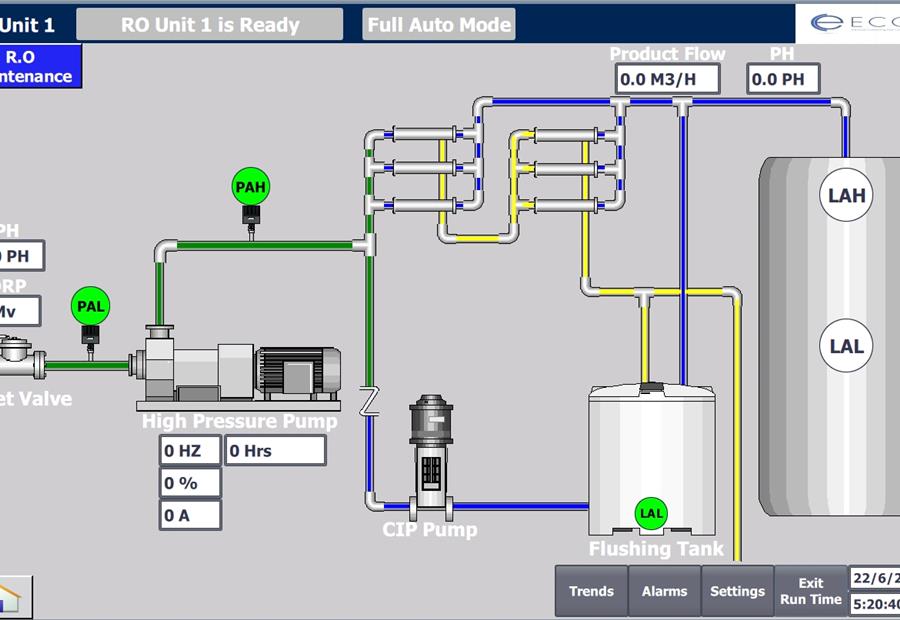

SCADA overview monitoring screen

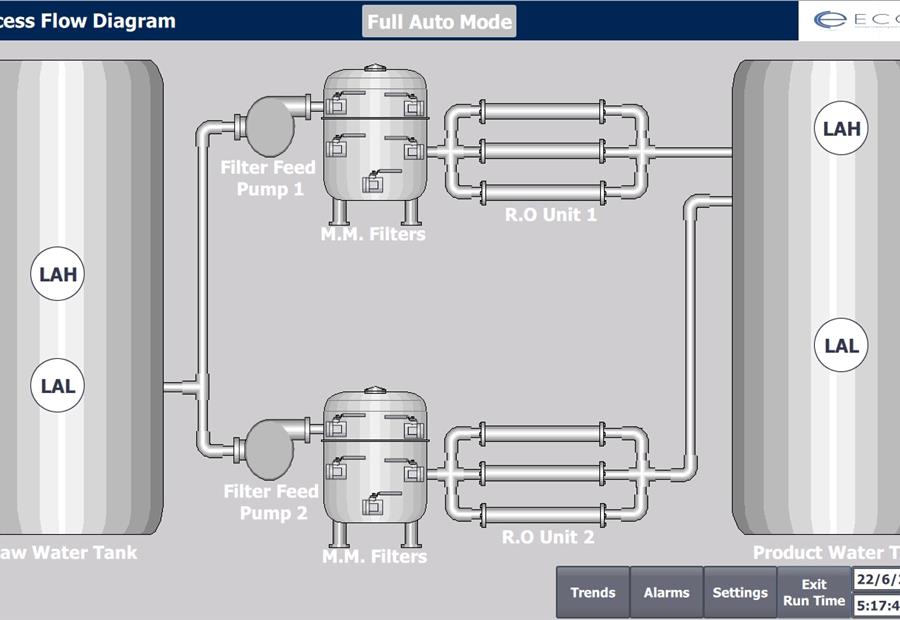

RO unit operation screen

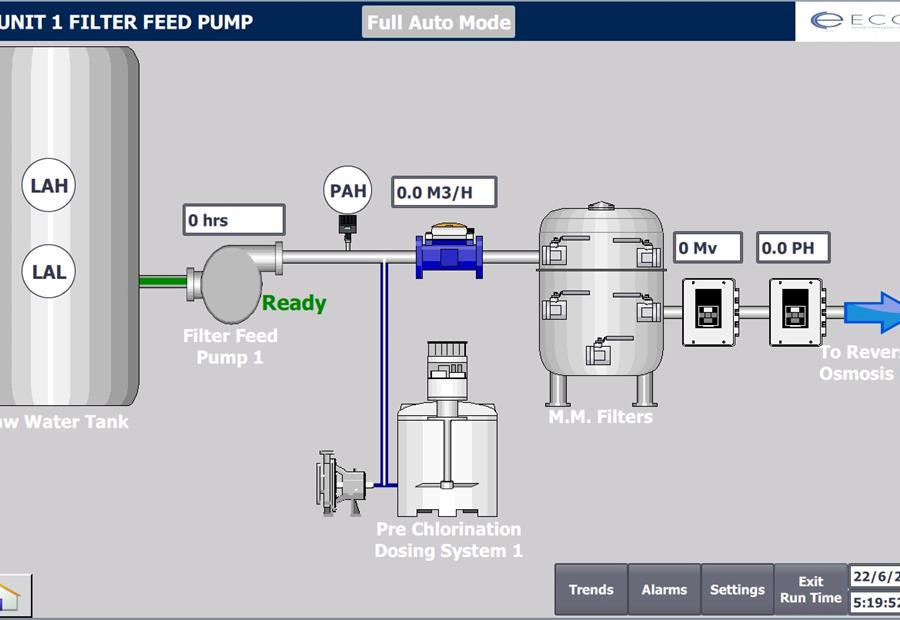

Filter feed pump SCADA screen

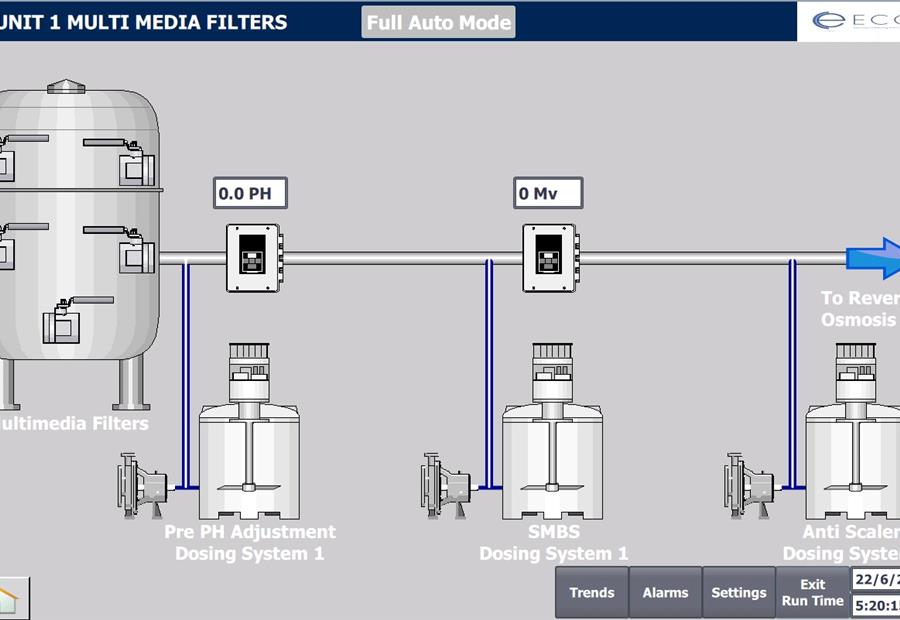

Multimedia filters SCADA screen

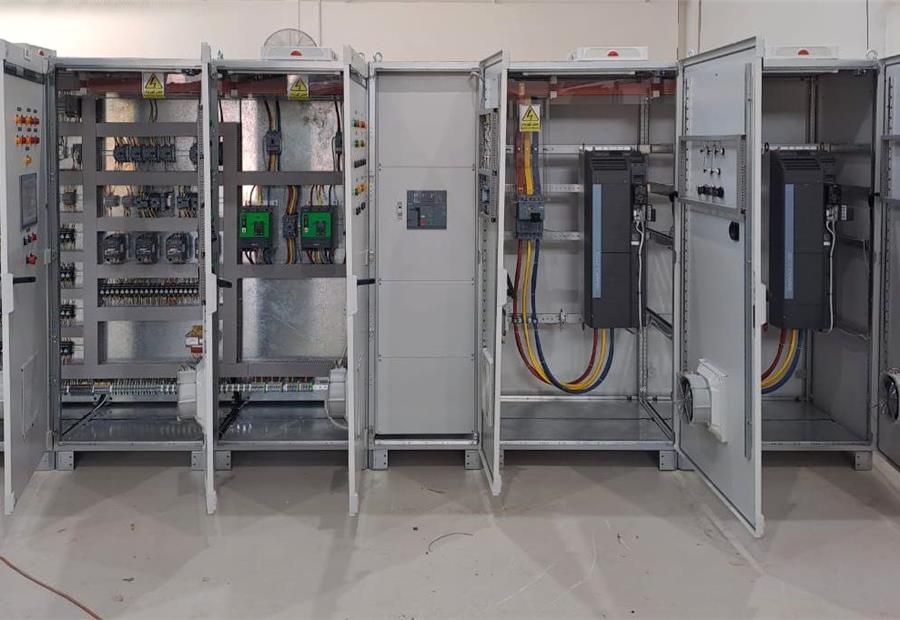

Full panel lineup with VFD and power sections

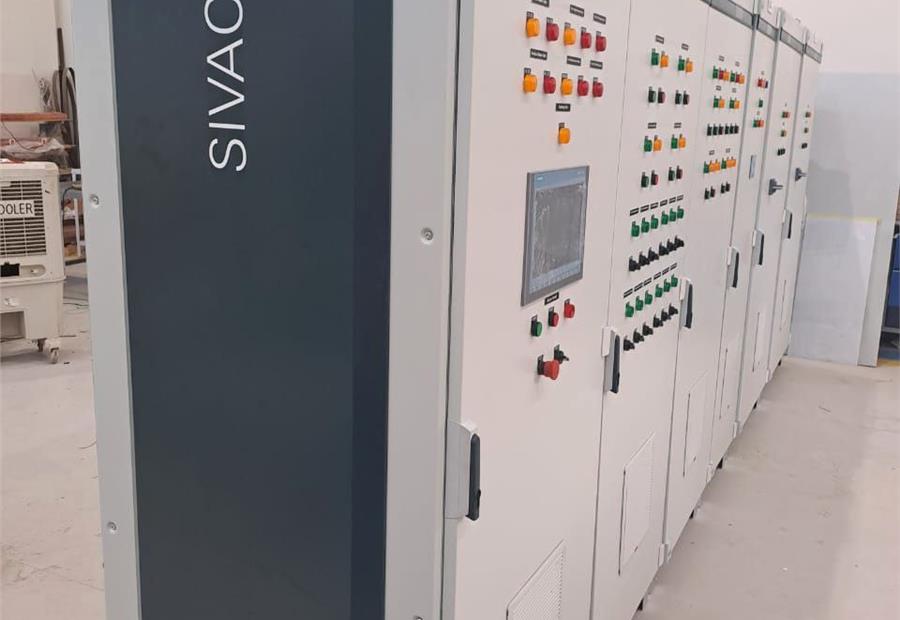

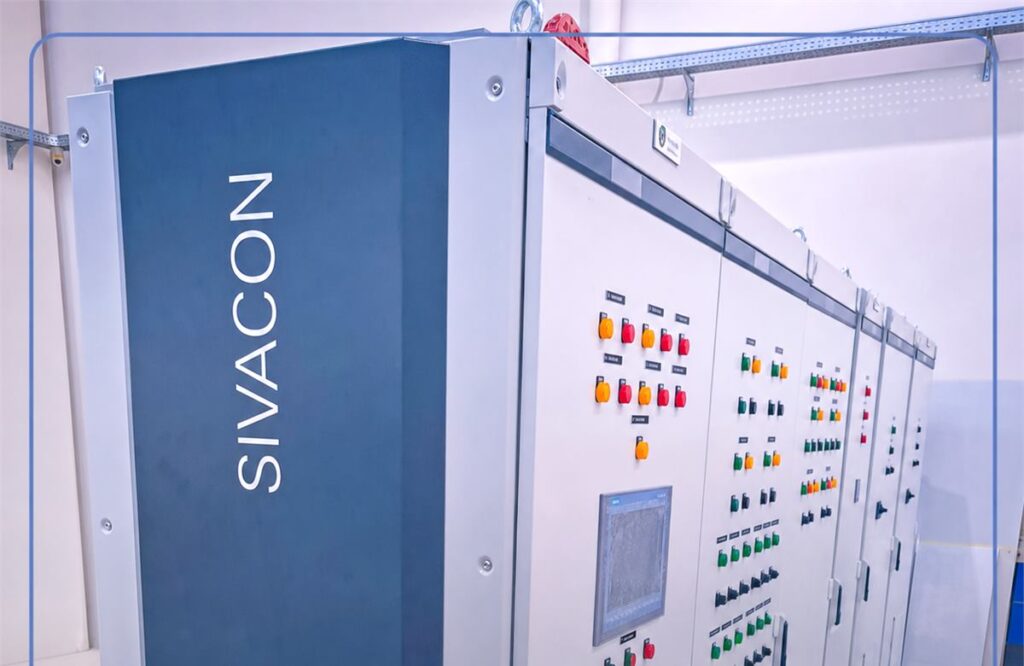

SIVACON panel exterior lineup

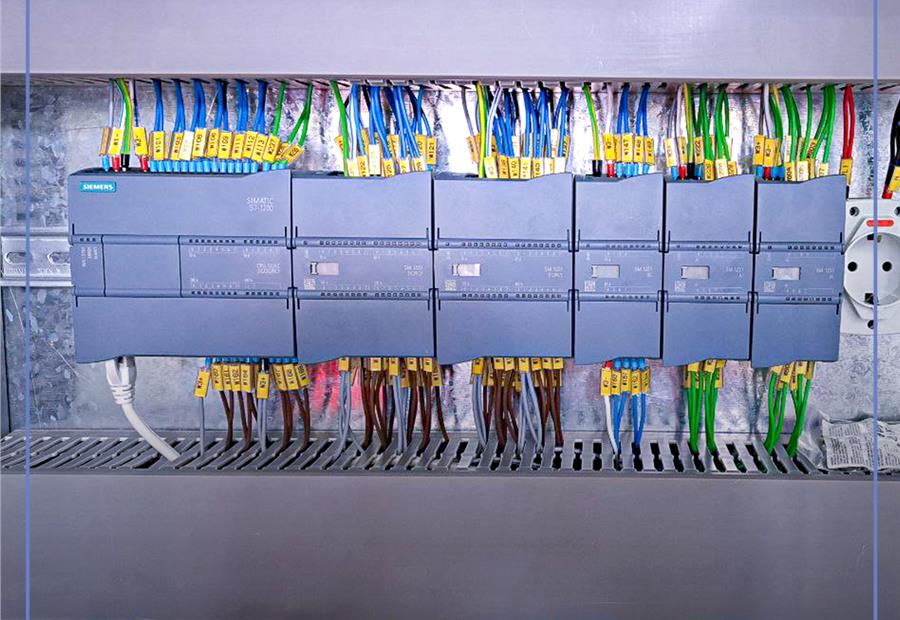

Siemens PLC and wiring detail

Project Outcome

A large RO automation package ready for operator monitoring, VFD-driven process equipment and commissioning handover.
